Application:
It is suitable for printing on all kinds textile products like T shirt, cloth, socks, umbrella. PVC plat and etc.
Characteristic:
* Multi-functions for different objection
* Stainless stell bolts increase using life
* Heavy weight to keep the machine steady in printing time
* Uniform double clamps system to keep the frame steady
* With adjustable and high temperature resistance stations
* With micro-registration system on left-right/front-back angles on horizontal and vertical
Models:
Model
| 440F | 660F | 880F | 1010F |
Color | 4 color 4 station | 6 color 6 station | 8 color 8 station | 10 color10 station |
Clamps | Double | Double | Double | Double |
Micro registration | with | with | with | with |
Plate material | 8mm aluminum+ 8mm epoxy | |||
plate size(mm)
| 400X500 | 400x500 | 400X500 | 400X500 |
Max.frame size(mm) | 600X700 | 600X700 | 600X700 | 600X700 |
Min. printing size(mm) | 480x380 | 480x380 | 480x380 | 480x380 |
Production | 300+pcs/hr(1 hour) | |||
Working diameter(mm) | 2200 | 2600 | 3200 | 3500 |
Gross weight(kg) | 250 | 250 | 350 | 500 |
Pacing size(CM) | 130*130*110 | 150*150*135 | 150*150*135 | 160*160*135 |
Details:

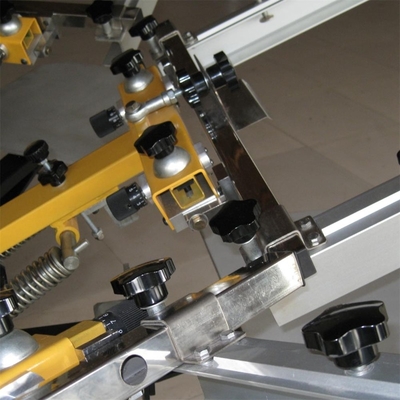

* Micro registration system on left-right/front-back angles on horizontal and vertical
* Double clamps guarantee the precise of printing
* Plate material was made of 8mm aluminum &8mm epoxy
Package:
* First. The machine was taken apart to package.
* Second, the outside of machine was covered with plastic film.
* Third, wooden case prevent machine damaging.
